1. Product Introduction
1.1 Product Description
Absorption is used to remove one or more gaseous components from a gas stream using a solvent.
First, a mixture of carbon dioxide and air is generated. The mixing ratio can be adjusted via valves. The flow rates of the gas components are displayed.
A compressor delivers the gas mixture to the lower section of the absorption column. In the column, some CO2 is separated from the solvent in a countercurrent flow. Water is used as the solvent. Carbon dioxide is absorbed by the downward-flowing water. To separate the absorbed carbon dioxide, charged water is then fed from the lower section of the absorption column into the desorption column. As the pressure decreases and the temperature increases, the solubility of CO2 decreases. A heater heats the water. A water jet pump creates negative pressure in the desorption column, causing CO2 gas to be expelled from the water. The pump then returns the regenerated solvent to the absorption column.
The water temperature is controllable. Flow rate, temperature, and pressure are continuously measured. Both column sections are equipped with connections for measuring pressure loss. Pressure loss in each section can be displayed using two U-tube manometers. To assess the success of the process, the trainer has gas and liquid sample collection outlets. Gas samples can be analyzed using the provided handheld measuring unit.
1.2 Product Features
(1) The product possesses excellent electrical safety performance, adopt superior protective design and reliable grounding.
(2) The product has a beautiful and simple design.
(3) The product uses corrosion-resistant and robust materials, ensuring durability and significantly extending its service life.
2. Technical Specifications
2.1 Technical Parameters
Power Supply Parameters: Single-phase Three-wire AC220V 50Hz (must use cable of 6mm² or larger)
Operating Environment Requirements: Ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and Weight
Dimensions: 1920mm X 790mm X 2300mm
Weight: < 290kg


3. Product Component Names and Functions

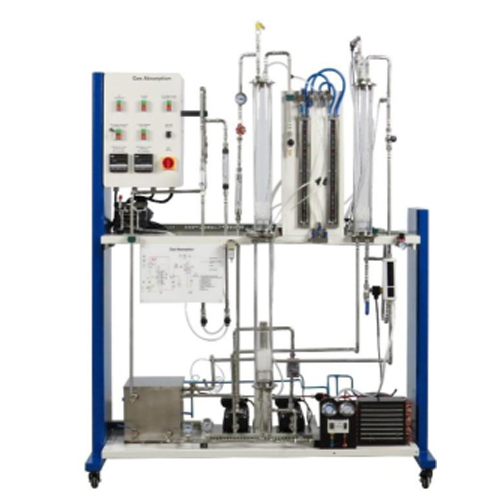

3.1 Main Body of the Product
No    Name    Qty.
1    Air pump switch    1
2    Refrigeration switch    1
3    Absorber tower pump    1
4    Separation tower pump    1
5    CO2/air jet pump    1
6    Network port    1
7    Temperature display instrument    1
8    Pressure PID control instrument    1
9    Power switch    1
10    Air pump    1
11    Gas flow meter    2
12    Absorber tower    1
13    U-type level gauge    2
14    Separation tower    1
15    CO2 dryer filter    1
16    Heater    1
17    Compressor    1
18    Condenser    1
19    High and low pressure protection switch    1
20    Plate heat exchanger    1
21    Electric proportional valve    1
22    Low-pressure mechanical gauge    1
23    High-pressure mechanical gauge    1
24    Water circulation pump    2
25    Water tank    1
3.2 Product Accessories
No    Name    Qty.
1    Digital multimeter    1
2    Water pipes    1
3    Power cable female connectors    1
4    Pipe hoop    3
5    Network cables    1
6    Carbon dioxide detectors    1
7    Pressure reducing valve    3
8    Gas tank    3
4. List of Product Teaching Experiments
(1) Carbon Dioxide Absorption and Separation Experiment
